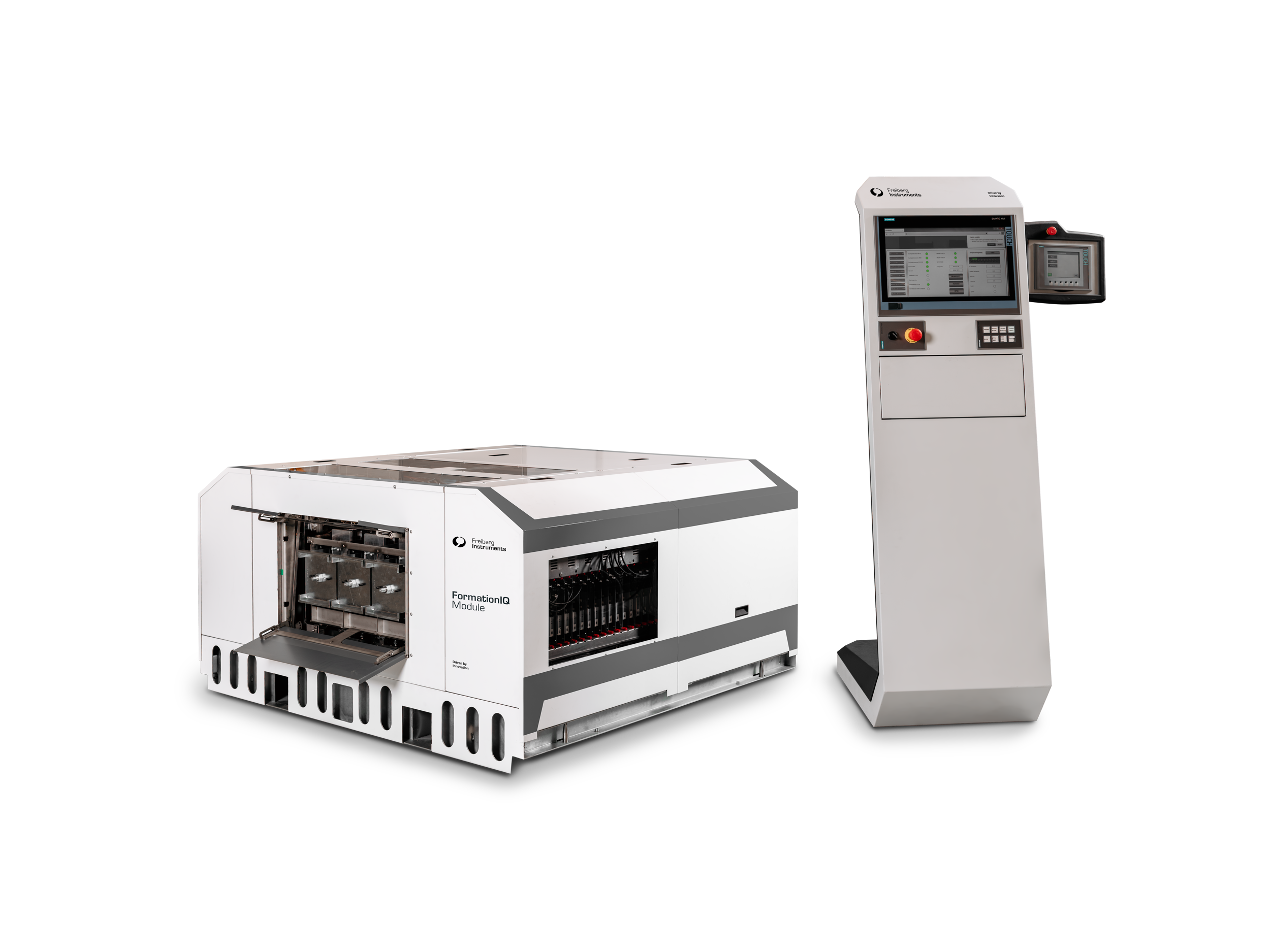

FormationIQ Module

Enables intelligent, measurement-driven battery formation and testing in GWh scale production

Interested? Get in touch!

Designed to scale advanced battery cell processing into high volume manufacturing – smart and modular.

Seamless scale-up through unified software and control architecture
Advanced sensing and control for continuous process monitoring and optimization
High channel density and modular design for scalable, high-throughput production

SCT series enable reliable formation and testing of all common battery cell formats including cylindrical, prismatic, and pouch cells.

LFP L(M)FP NMC Na-Ions All Solid State NextGen Materials

Up to
45 %

CAPEX saving

600 Ampere

Charging current

Process
Control

By integrated process monitoring

Modular

Configurable to throughput demand

Modular

Configurable to throughput demand

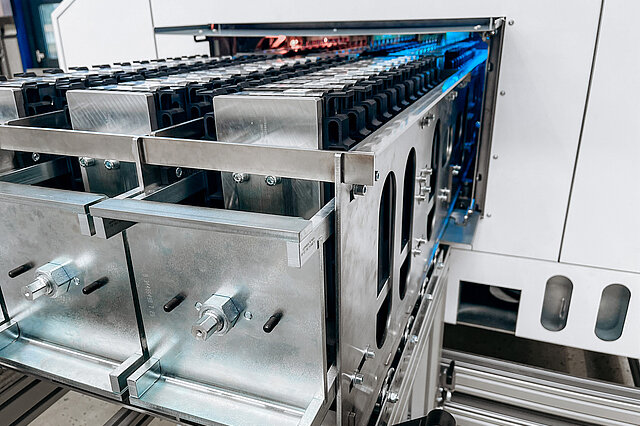

Semi-automated formation module for industrial environments with manual or automated cell handling
Scalable system architecture enables integration into automated production systems at GWh scale

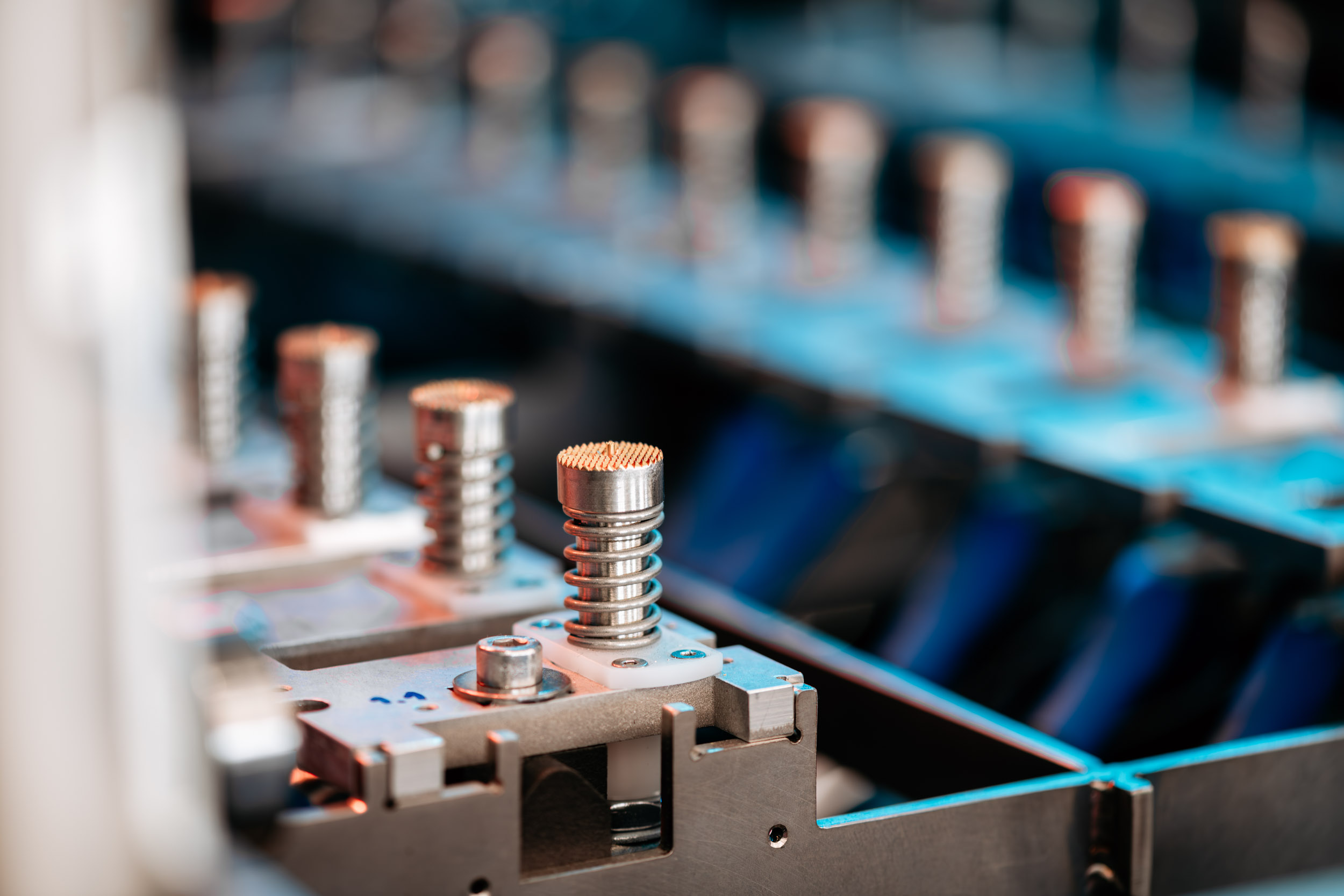

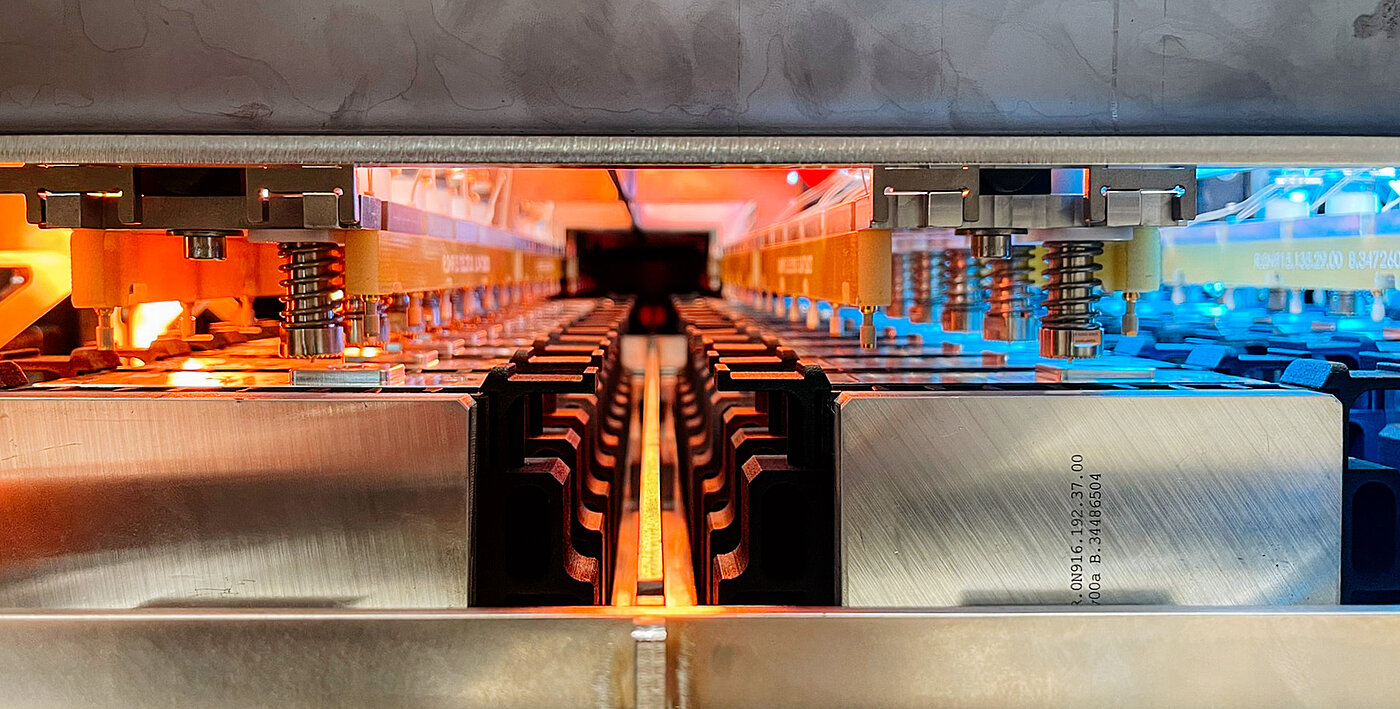

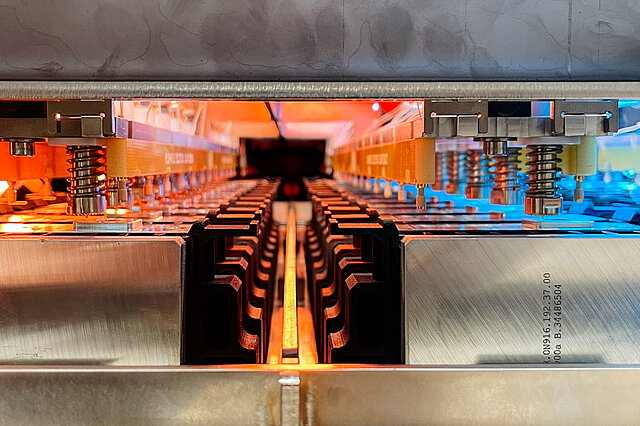

Automated cell contacting for reliable and reproducible electrical connections
High-performance, bidirectional power electronics for efficient charging and discharging (energy feedback to grid)
Flexible multi-mode operation (CC, CV, CCCV, CP, and CR modes) for production-ready formation processes

High-speed pulsed mode for advanced processing
High current capability with scalable architecture up to 600 A for high-throughput applications
Precise cell-level monitoring by integrated sensing including impedance spectroscopy (EIS)
High accuracy and reproducibility ensuring consistent cell quality in production
Ready for seamless transfer of validated protocols from FormationIQ Matrix, enabling fast and reliable scale-up from development to production

We bring next-level battery formation into production by enabling scalable, controlled, and high-throughput processes.

Mathias Martin
Head of Design & Development

Get in touch!

System configuration	Modular design with automated cell contacting and handling interfaces Configurable amount of channels depending on cell type Up to 72 channels per module Software and system control by FormationIQ Studio
Electrical performance	Current range: up to 600 A Voltage range: up to 6 V
Measurement performance	Current accuracy: up to <0.03 % FSD Voltage accuracy: <0.05 % FSD
Dynamic performance	Fast current response (<5 ms) Pulse mode with up to 20 kHz update rate Measurement sampling up to 20 kHz
Testing capabilities	Electrochemical impedance spectroscopy (EIS) up to 5 kHz Pulse testing Coulomb and energy counting
Dimension (w × h × d)	1835 × 935 × 1920 mm
