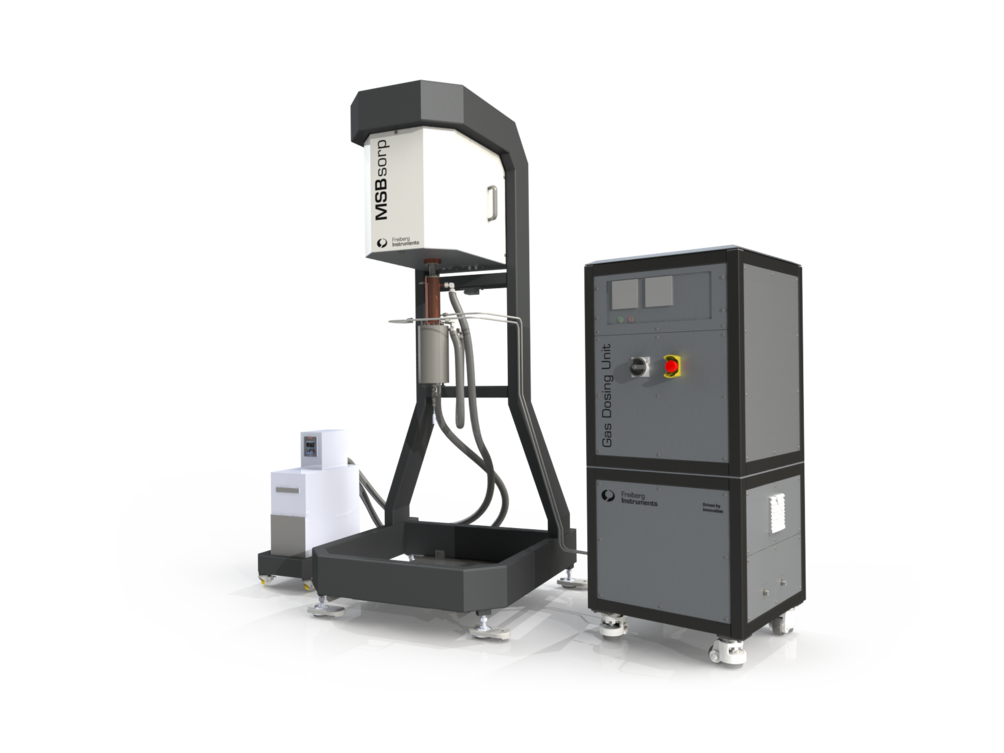

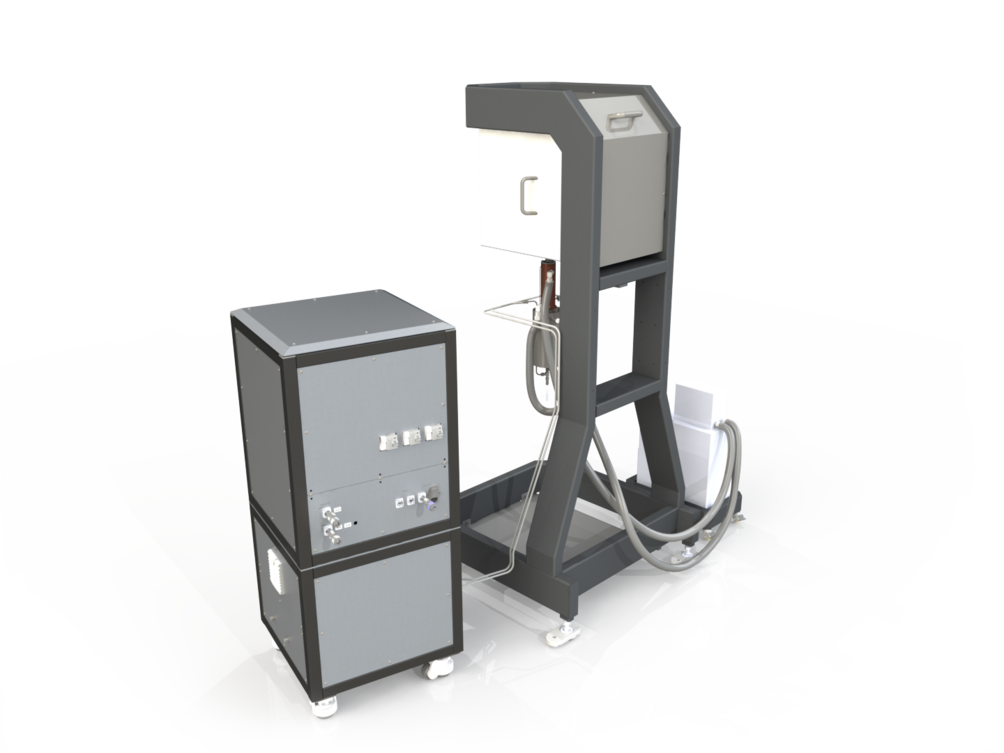

High-resolution mass determination under extreme conditions – from vacuum to high pressure and cryogenic to very high temperatures
Highly sensitive measurement of mass change
Extreme conditions approved (even under aggressive, toxic or explosive atmospheres)
Long-term stable gravimetric measuring system
Materials
MSBsorp can be adapted to nearly all kinds of gases and fluids.
Inertgas Aggressive toxic gases Supercritical fluids Flammable and explodable gases Gas mixtures Vapour Vacuum
Features & Benefits
Vacuum up to
700 bar
Wide range of sample material
Sensitivity
1µg or 10 µg
100 ng under development
Down to
-196 °C
Temperatures
Up to
+200 °C
Temperatures
MSBsorp combines microgram-level sensitivity with robust operation in demanding environments – enabling reliable sorption data where conventional balances reach their limits.
Dr. Nadine Schüler
Head of Research & Development
Technical specifications
| Sample |
|
|---|---|
| Material | Measurable fluids:
|
| Conditions |
|
| Weight | App. 150 kg |
| Dimensions | 850 x 870 x 2000 mm |
| Power | 200-240VAC, 50/60Hz, 2x C20 (à 16A max) |
| Resolution | 1 µg or 10 µg (100 ng under development) |
