FormationIQ Board

Enables intelligent, measurement-driven battery formation through integrated sensing and advanced charging control

Interested? Get in touch!

Rethink battery formation: Intelligent, precise and scalable.

Extensive integrated measurement capabilities incl. EIS
Controlled formation process with proprietary control algorithm
Modular electronics for scalable and flexible system integration incl. drop-in solutions

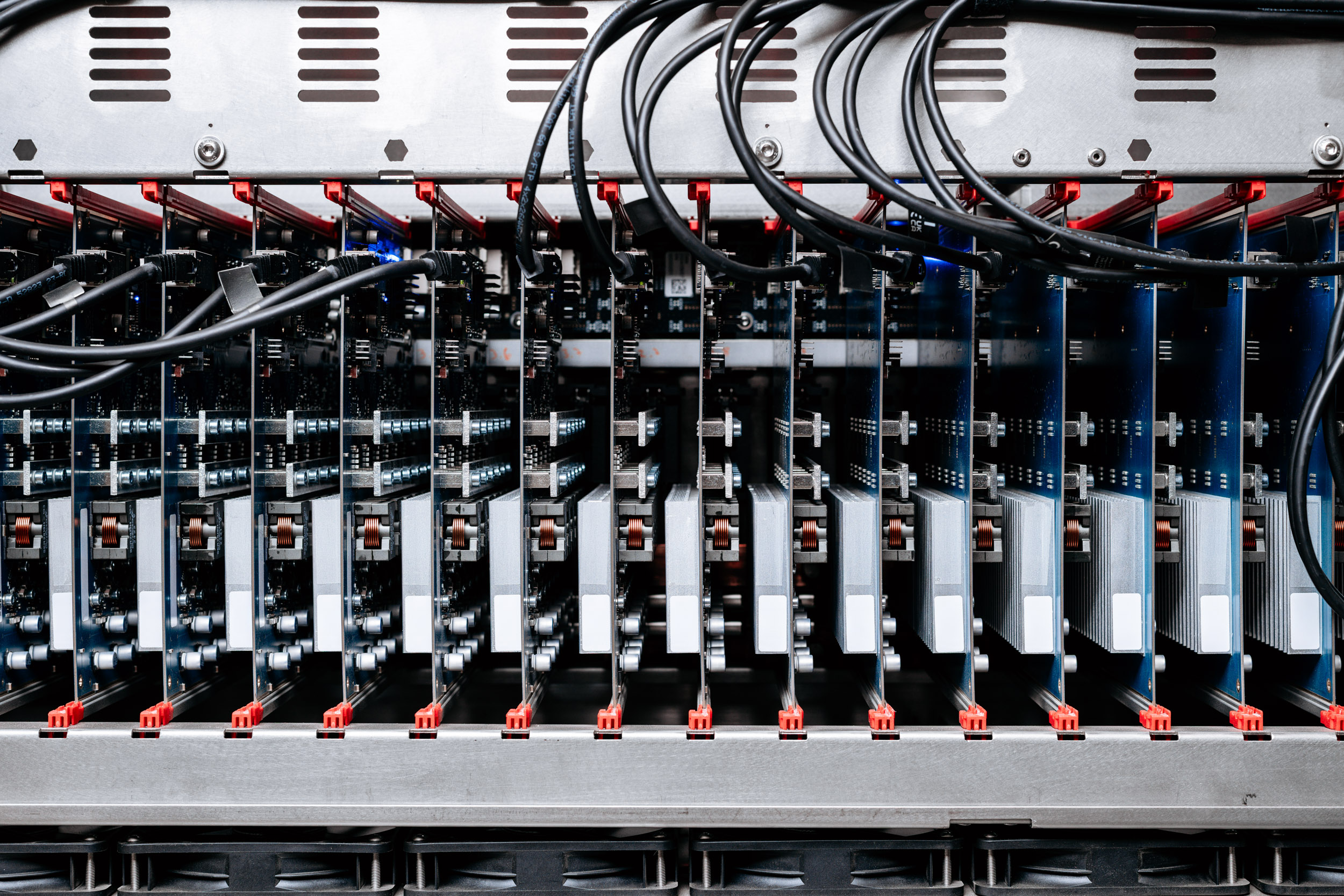

SCT series enable reliable formation and testing of all common battery cell formats including cylindrical, prismatic, and pouch cells.

LFP L(M)FP NMC Na-Ions All Solid State NextGen Materials

Up to
45 %

process time saving

600 Ampere

Charging current by parallel operation

Drop-In

for integrators & existing systems

Smart

Energy recuperation possible

Smart

Energy recuperation possible

High-performance, bidirectional power electronics for efficient charging and discharging (energy feedback to DC link)
Flexible multi-mode operation (CC, CV, CCCV, CP, and CR modes)
High-speed pulsed mode for advanced cell formation
High current capability with scalable architecture from 75 A to 600 A per channel for fast formation and high power battery cell applications

Precise cell-level monitoring by integrated sensing including impedance spectroscopy (EIS)
High accuracy and reproducibility by precise current and voltage control
Built-in safety and monitoring features such as reverse polarity protection and fast, hardware-based safe shutdown for secure operation
Seamless integration into existing or new battery testing and formation systems by compact, drop-in design

We enable intelligent battery formation by integrating advanced sensing and control directly into high-performance power electronics.

Prof. Dr. Ralf Lüdemann
Product Development Advisor (ext.)

Get in touch!

Electrical performance	Current range: up to 600 A Voltage range: up to 6 V
Measurement performance	Current accuracy: up to <0.03 % FSD Voltage accuracy: <0.05 % FSD
Dynamic performance	Fast current response (<5 ms) Pulse mode with up to 20 kHz update rate Measurement sampling up to 20 kHz
Testing capabilities	Electrochemical impedance spectroscopy (EIS) up to 5 kHz Pulse testing Coulomb and energy counting
System integration	Compact form factor with integrated heatsink External measurement channels for voltage and temperature Designed for scalable, multi-channel system architectures and drop-in
Dimension (w × h × d)	220 × 225 × 36 mm
