FormationIQ Matrix

Enables intelligent, measurement-driven battery formation and testing in pilot-scale environment

Interested? Get in touch!

Designed to support cell development and process qualification – smart, flexible and scalable.

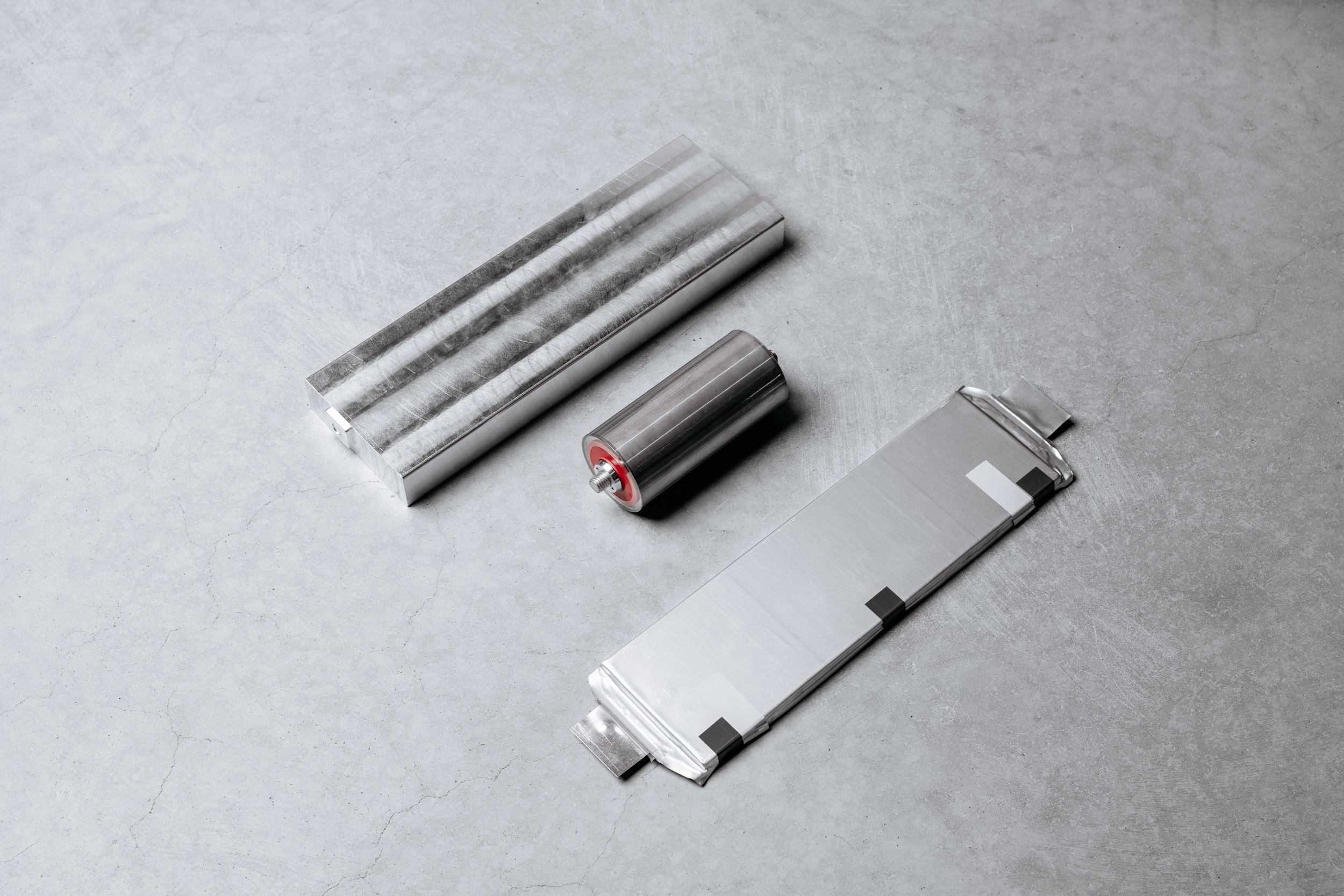

SCT series enable reliable formation and testing of all common battery cell formats including cylindrical, prismatic, and pouch cells.

LFP L(M)FP NMC Na-Ions All Solid State NextGen Materials

Up to
45 %

process time saving

600 Ampere

Charging current by parallel operation

EIS included

Electrochemical Impedance Spectroscopy

Full demo

On software and control

Full demo

On software and control

Flexible multi-channel system for flexible battery formation, testing, and validation in R&D and pilot environments
Flexible and user-defined formation and test protocols for different cell formats and chemistries
High-performance, bidirectional power electronics for efficient charging and discharging (energy feedback to DC link)
Flexible multi-mode operation (CC, CV, CCCV, CP, and CR modes)
High-speed pulsed mode for advanced cell formation

High current capability with scalable architecture from 75 A to 600 A per channel for fast formation and high power battery cell applications
Precise cell-level monitoring by integrated sensing including impedance spectroscopy (EIS)
High accuracy and reproducibility across all channels for reliable and comparable results
Intuitive FormationIQ Studio software for recipe design, real-time monitoring, and data analysis
Enables direct scaling from R&D to production through 1:1 transfer of validated protocols based on a unified software and control platform

We accelerate battery development by turning measurement-driven formation and testing into actionable process insights.

Dr. Nadine Schüler
Head of Research & Development

Get in touch!

System configuration	Modular design based on industrial cabinet 8 – 64 channels per system Software and system control by FormationIQ Studio
Electrical performance	Current range: up to 600 A Voltage range: up to 6 V
Measurement performance	Current accuracy: up to <0.03 % FSD Voltage accuracy: <0.05 % FSD
Dynamic performance	Fast current response (<5 ms) Pulse mode with up to 20 kHz update rate Measurement sampling up to 20 kHz
Testing capabilities	Electrochemical impedance spectroscopy (EIS) up to 5 kHz Pulse testing Coulomb and energy counting
Dimension (w × h × d)	Up to 32 channels: 802 × 985 × 1444 mm Up to 64 channels: 802 × 985 × 2100 mm
