Dynamic 3D-Luminescence: Simultaneous combined X-Ray, Temperature and Cryogenic Control
Aim
The objective of this setup is to perform 3D-Luminescence Mapping (Intensity vs. Wavelength vs. Temperature/Time). By observing the emission spectrum change in real-time during irradiation or heating from -50°C to 710°C, researchers can:
Fingerprint Minerals: Identify characteristic luminescence centers.
Study Kinetic Parameters: Observe trap filling and emptying in real-time from -50°C up to 710°C.
Optimize Dating Protocols: Select the best filters based on spectral sensitivity.
Improve development of advanced scintillators and persistent phosphors.
Trap Distribution: Analyzing trap depth Emission Site Identification: Distinguishing do-pant sites via 3D spectral resolution.
Scintillator Optimization: Measuring charging kinetics and afterglow via Radio-Luminescence (RL).

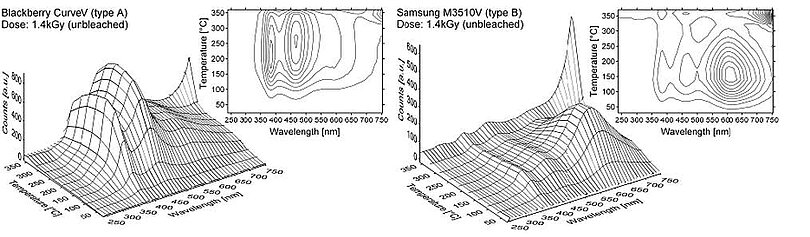

Figure 1: TL spectra of glass display used in mobile phones, Discher M., Woda C., 2017; SSD17 Poster
Solution

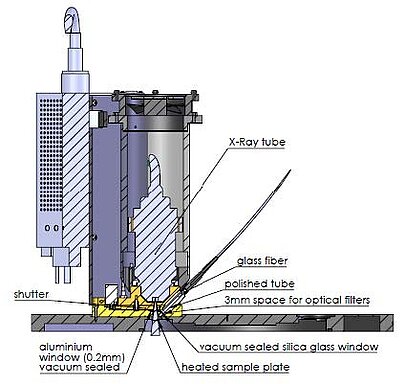

The Integrated Multi-Tool Setup
lexsygresearch is the only system capable of housing all these components simultaneously without cross-interference.

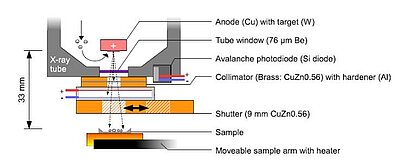

X-Ray Irradiation: Integrated miniature X-ray tube for Radio-Luminescence (RL).
High-Range Heater: Precise linear heating up to 710°C.
Peltier Cooling: Cryogenic capability down to -50°C.
Spectroscopic Detection: CCD/EMCCD for full-spectrum continuous acquisition.
Application example
Lu2Si2O7:Ce (LPS) Scintillators
Research at Clemson University utilized the lexsygresearch to solve timing resolution issues in silicate scintillators.
The lexsygresearch revealed multiple TL peaks across the full temperature range, allowing the team to model kinetics and optimize co-doping strategies to suppress afterglow.
Key Publications
For more details please read:
Prof. Luiz Jacobsohn - Department of Materials Science & Engineering - Clemson University
Jacobsohn, L. G., et al. (2018): Thermoluminescence and radioluminescence of Lu2Si2O7:Ce,Pr and Lu2Si2O7:Ce,Mg. Journal of Luminescence.
Kucera, C. J., Jacobsohn, L. G., et al. (2016): Luminescence and defects in Lu2Si2O7:Ce. Radiation Measurements.
Wahba, A. S., Jacobsohn, L. G., et al. (2017): Effect of synthesis on YAG:Ce scintillators. Optical Materials.
Prof. Eugeniusz Zych Institute of Low Temperatures of the Polish Academy of Sciences
Zych, Eugeniusz & Stefanowska, Dagmara. (2013). Energy Recovery from Lu 2 O 3 :Tb,Hf Ceramic Storage Phosphors. Zeitschrift für Naturforschung B. 69b. 165-170.10.5560/ZNB.2014-3296.
Aleksandra Owczarek et al 2025 Meet. Abstr. MA2025-02 2454: Temperature-Dependent Luminescence in the Triple-Doped LaAlO3 for the Use in Biological Systems
Zeler, Justyna & Bolek, Paulina & Stefanowska, Dagmara & Zych, Eugeniusz. (2018). On Thermoluminescence Mechanism and Energy Leakage in Lu2O3:Tb,V Storage Phosphor. Optical Materials: X. 1. 100001. 10.1016/j.omx.2018.100001.
Scintillating and Photoluminescent Ratiometric and Visual Luminescence Thermometry Based on the Ce3+-Doped Eutectic Structures
Karol Bartosiewicz, Maja Szymczak, Masao Yoshino, Takahiko Horiai, Robert Tomala, Justyna Zeler, Aleksandra Owczarek, Damian Szymanski, Marcin E. Witkowski, Vítězslav Jarý, Winicjusz Drozdowski, Eugeniusz Zych, Akira Yoshikawa, and Łukasz Marciniak
ACS Applied Materials & Interfaces 2025 17 (43), 59611-59624
